2017 Best Selling 86w Light Emitting Diode 2700k~6500k XLamp CXA2540 For Sale Good Price Led Chip For Downlights

FOB Reference Price:Get Latest Price
  • 200 - 399
    US $8.03
  • 400 - 799
    US $7.79
  • 800 - 1000
    US $7.42
  • >=1001
    US $7.26
Supply Ability:
100000 Piece/Pieces per Month
Port:
HK, Shenzhen
Report Suspicious Activity
Overview
Quick Details
Type:
High Power LED, High Power LEDs
Model Number:
XLamp CXA2540
Chip Material:
InGaN
Emitting Color:
White( Warm White, Neutral White, Cool White)
Luminous Intensity:
High Power
Luminous Flux(lm):
4860
Power:
86W
Power Dissipation:
86
Viewing Angle(°):
115
Color Rendering Index(Ra):
80
Color Temperature:
2700k~6500k
Operating Temperature(℃):
-40 - +85
Place of Origin:
Guangdong, China (Mainland)
Certification:
CE, RoHS
Brand:
Cree
Lens Color /Style:
Tinted, Clear
LED Size:
23.85 mm x 23.85 mm x 1.7 mm
Package/Case:
COB - Chip-on-Board
Packing:
Tray
Light Emitting Surface:
19mm
Voltage:
36 v
CRI:
80Ra, 90Ra, 93Ra
MOQ:
100pcs
Packaging & Delivery
Packaging Details
Original Cree Packing
Delivery Time
2~4 days upon receiving payment

2017 Best Selling Light Emitting Diode Cree XLamp CXA2540 For Sale Good Price Led Chip For Downlights



Cree XLamp® CXA LED Arrays: Highest Efficacy Lighting-Class LED Arrays

Cree XLamp® CXA LED Arrays deliver high lumen output and efficacy in a family of single, easy-to-use components. Optimized to simplify designs and lower system cost, Cree's CXA LED arrays deliver system level performance from 550 to over 15,500 lumens and can enable applications ranging from GU10s to commercial downlights. With Cree's CXA LED arrays, lighting manufacturers can have both performance and ease-of-use in a single LED.



Cree XLamp CXA2540 LED Arrays expand Cree's family of high-flux, multi-die integrated arrays, offering high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. With XLamp lighting-class reliability, the CXA2540's uniform emitting surface enables both directional and non-directional lighting applications and luminaire designs. Optimized to simplify designs and lower system cost, the CXA2540 LED Array can enable system-level performance of up to 7,000 lumens, enabling applications that traditionally use halogen, ceramic metal halide, and compact fluorescent technology. Available in 2-step and 4-step color consistency, and featuring a 19mm optical source, the CXA2540 brings new levels of flux and efficacy to this form factor.



Features

  • Available in ANSI white bins as well as 4-step and 2-step EasyWhite™ bins at 2700K, 3000K, 3500K, 4000K, and 5000K CCT
  • Top-side solder connections
  • Thermocouple attach point
  • NEMA SSL-3 2011 standard flux bins
  • Mechanical and optical footprint consistent with CXA2520 and CXA2530

Specifications

  • 80 minimum CRI option
  • Forward voltage: 37V
  • 85ºC binning and characterization
  • Maximum drive current: 2100mA
  • 115º viewing angle, uniform chromaticity profile

 Applications



Product Description



Example Part #:CXA2540-0000-000N0HW250H

Product Category:

High Power LEDs - White

Manufacturer:

Cree, Inc.

RoHS:

Yes

Package / Case:

COB - Chip-on-Board

Illumination Color:

White (Cool White)

Wavelength/Color Temperature:

5000 K

Luminous Flux/Radiant Flux:

4860 lm

Color Rendering Index - CRI:

80

Viewing Angle:

115 deg

Lens Color/Style:

Tinted, Clear

If - Forward Current:

1100 mA

Vf - Forward Voltage:

37 V

Power Rating:

86 W

Mounting Style:

SMD/SMT

Length:

23.85 mm

Width:

23.85 mm

Height:

1.7 mm

Maximum Operating Temperature:

+ 85 C

Minimum Operating Temperature:

- 40 C

Series:

 CXA2540

Packaging:

Tray

Brand:

Cree, Inc.

Color Temperature:

5000 K

LED Size:

23.85 mm x 23.85 mm x 1.7 mm

Lens Dimensions:

19 mm

Lens Shape:

Round Flat

Factory Pack Quantity:

100

Type:

High Power LEDs

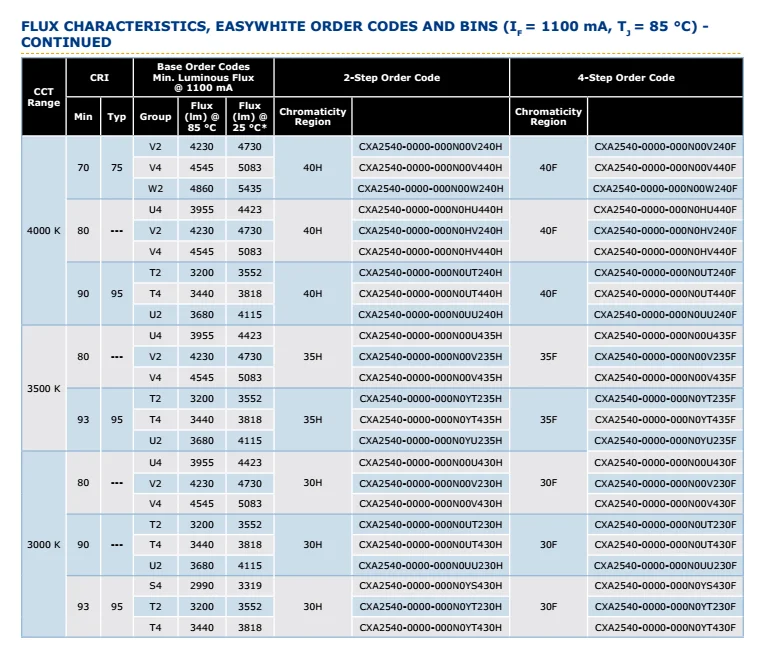

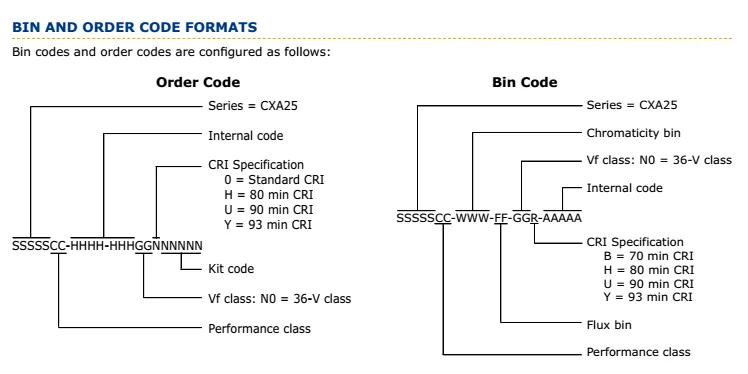

 Ordering Code of Cree XLamp CXA2540:











Advantages
> 100% original packing
> Steady & sufficient stocks
> High-end service quality
> Prompt delivery
